Product Display
产品展示
详细内容
参数

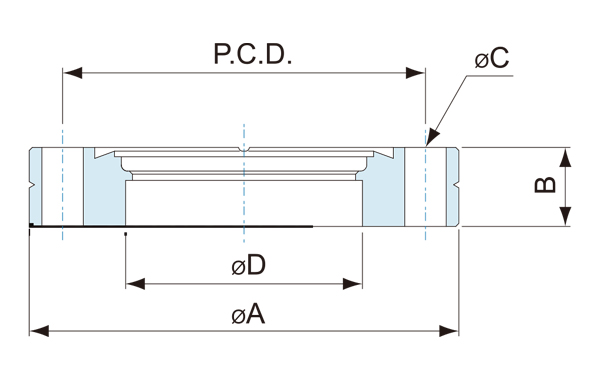

| 型号 | 材质 | A | B | C | D | P.C.D | 重量 | 部件编号 |
| CF35YTB25 | 304 S.S. | 69.5 | 12.7 | 6.7*6 | 25.6 | 58.7 | 0.313 | 040144010015 |
| CF35YTB38 | 304 S.S. | 69.5 | 12.7 | 6.7*6 | 38.3 | 58.7 | 0.256 | 040144010003 |
| CF35YTB43 | 304S.S. | 69.5 | 12.7 | 6.7*6 | 42.9 | 58.7 | 0.228 | 040144010011 |
| CF50YTB51 | 304S.S. | 113.6 | 18 | 8.4*8 | 51.1 | 92.1 | 0.416 | 040144010004 |
| CF63YTB64 | 304 S.S. | 113.6 | 18 | 8.4*8 | 63.7 | 92.1 | 0.898 | 040144010005 |
| CF100YTB102 | 304 S.S. | 151.6 | 20 | 8.4*16 | 101.8 | 130.3 | 1.440 | 040144010006 |
| CF150YTB153 | 304S.S. | 202.5 | 22 | 8.4*20 | 153.1 | 181 | 2.217 | 040144010007 |
| CF200YTB204 | 304 S.S. | 253.2 | 24.7 | 8.4*24 | 203.7 | 231.8 | 3.226 | 040144010008 |
| CF250YTB255 | 304 S.S. | 336.5 | 28.5 | 10.3*30 | 254.5 | 306.5 | 4.293 | 040144010009 |
| CF35YTB25-316 | 316S.S. | 69.5 | 12.7 | 6.7*6 | 25.6 | 58.7 | 0.314 | 040144040016 |
| CF35YTB38-316 | 316S.S. | 69.5 | 12.7 | 6.7*6 | 38.3 | 58.7 | 0.257 | 040144040003 |
| CF35YTB43-316 | 316S.S. | 69.5 | 12.7 | 6.7*6 | 42.9 | 58.7 | 0.229 | 040144040012 |
| CF50YTB51-316 | 316S.S. | 113.6 | 18 | 8.4*8 | 51.1 | 92.1 | 0.418 | 040144040004 |
| CF63YTB64-316 | 316S.S. | 113.6 | 18 | 8.4*8 | 63.7 | 92.1 | 0.901 | 040144040005 |
| CF100YTB102-316 | 316 S.S. | 151.6 | 20 | 8.4*16 | 101.8 | 130.3 | 1.444 | 040144040006 |
| CF150YTB153-316 | 316S.S. | 202.5 | 22 | 8.4*20 | 153.1 | 181 | 2.225 | 040144040007 |
| CF200YTB204-316 | 316S.S. | 253.2 | 24.7 | 8.4*24 | 203.7 | 231.8 | 3.237 | 040144040008 |
| CF250YTB255-316 | 316 S.S. | 336.5 | 28.5 | 10.3*30 | 254.5 | 306.5 | 4.308 | 040144040009 |
注：特殊尺寸均可按需定制
